Key Features


  • Guardian 6100 Plus, CaptivATE, 1500VA or 800VA AC Source, Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied-Part)
  • Multi-Point Hipot, GB and LC Testing
  • Up to 12 Patient (Applied Part) Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
  • Control AC Line Voltage & Frequency
  • G6100 Plus Tests: AC, DC, IR, GB & LC
  • LC Tests: Earth, Enclosure, Patient & Patient Auxiliary
  • LC Scanner: 20A Input Current Capability
  • Functional Run Testing
  • CaptivATE Automation Software
  • User Name/Password Protection
  • 3 Levels of Administrator-Controlled Access to the System
  • Barcode Scan Model & Serial Numbers
  • Create, Edit and Store Unlimited Test Sequences
  • Association of Test Sequences to Unique UUT Models or ID Numbers
  • Historical Data Querying Tools
  • Capture, Archive & Print Test Parameters, Results & Reports
  • Electronic Test Records

Applications

  • Medical Device Testing
  • Single-Lead Testing
  • Functional Run Testing


» 978-461-2100
» email sales
» email service
» datasheet


Get our Newsletter: Click the link below to register.

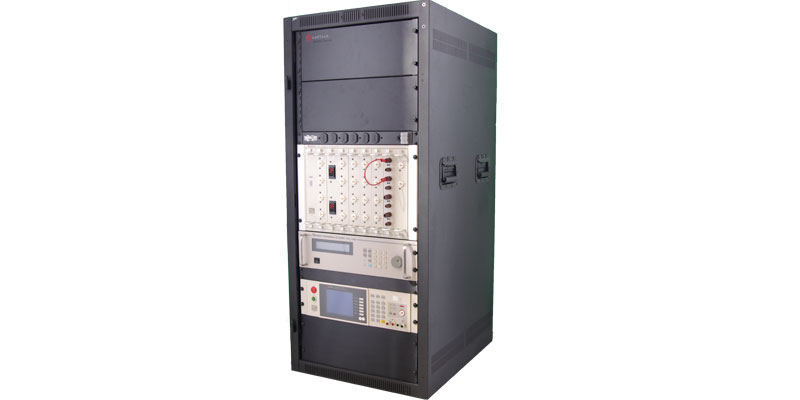

Sentinel III - Medical System



The Sentinel III System provides complete Electrical Safety Testing to IEC60601-1 and IEC 60601-2-49 (Multifunctional Patient Monitoring Equipment) in a fully automated fashion. The Sentinel III saves time by scanning patient connections for leakage current without powering down the device. The Sentinel III System comes in two basic configurations:

  • Sentinel III comes with a 1500VA programmable source and can support either 4, 8, 12 or 16 patient connections.
  • Sentinel IIIa comes with an 800VA programmable source and can support either 4, 8, 12 or 16 patient connections.

Sentinel III systems save time by scanning patient connections for leakage current without powering down the medical device. They also have soft start/stop capability, which permits PC-based medical devices to boot up/shut down before starting leakage tests and removing mains power.

Ordering information


Sentinel III-04: Medical Test System
  • G6100 Plus, CaptivATE, 1500VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 4 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
Sentinel III-08: Medical Test System
  • G6100 Plus, CaptivATE, 1500VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 8 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
Sentinel III-12: Medical Test System
  • G6100 Plus, CaptivATE, 1500VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 12 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
Sentinel III-16: Medical Test System
  • G6100 Plus, CaptivATE, 1500VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 16 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
Sentinel IIIa-08: Medical Test System
  • G6100 Plus, CaptivATE, 800VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 8 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
Sentinel IIIa-12: Medical Test System
  • G6100 Plus, CaptivATE, 800VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 12 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
Sentinel IIIa-16: Medical Test System
  • G6100 Plus, CaptivATE, 800VA AC Source and Matrix 8000 Scanning System
  • Testing to IEC 60601-1 & IEC 60601-2-49
  • F-Type LC (Mains-on-Applied Part)
  • No Changing Cables during the Test
  • 16 Patient Connections
  • Power-Up Computerized Devices
  • Device Stays Powered-On During Scanning
